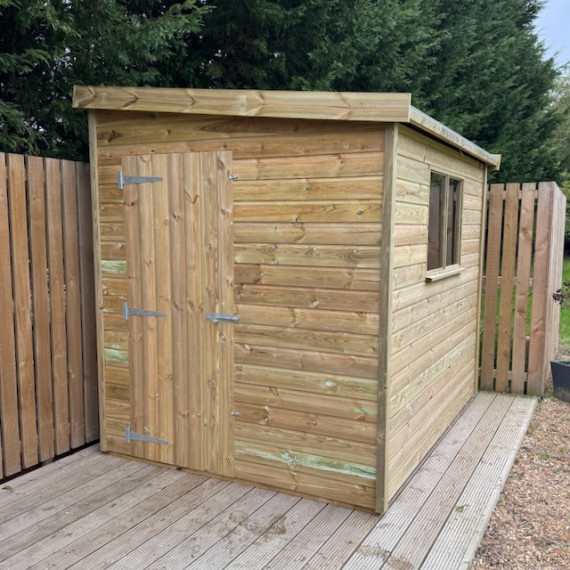

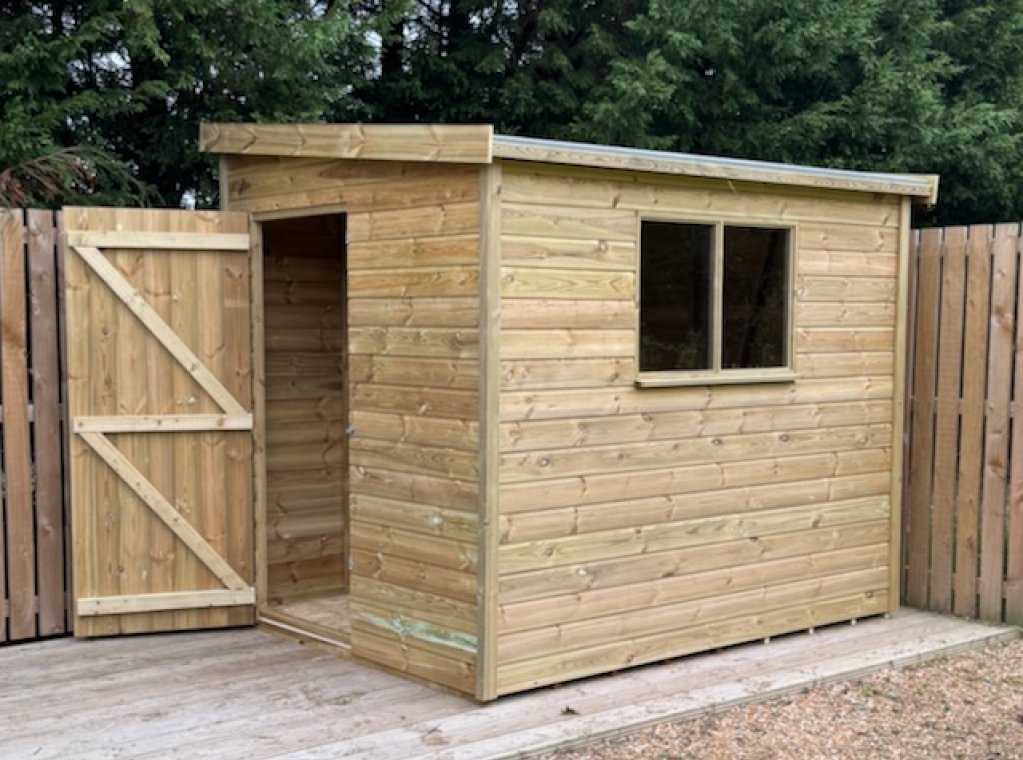

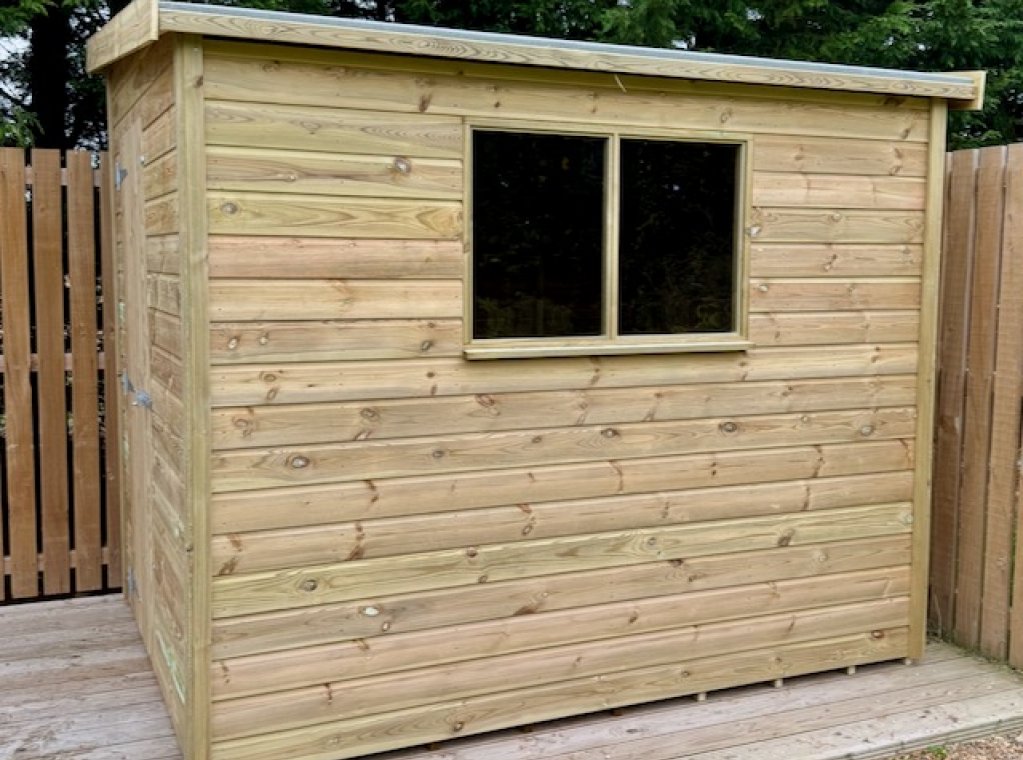

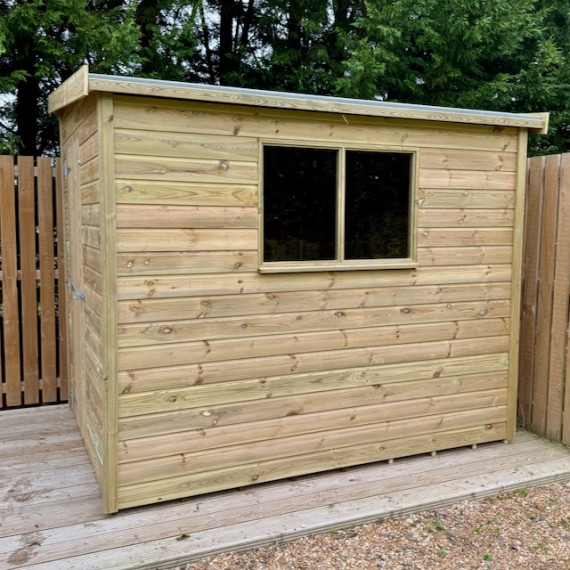

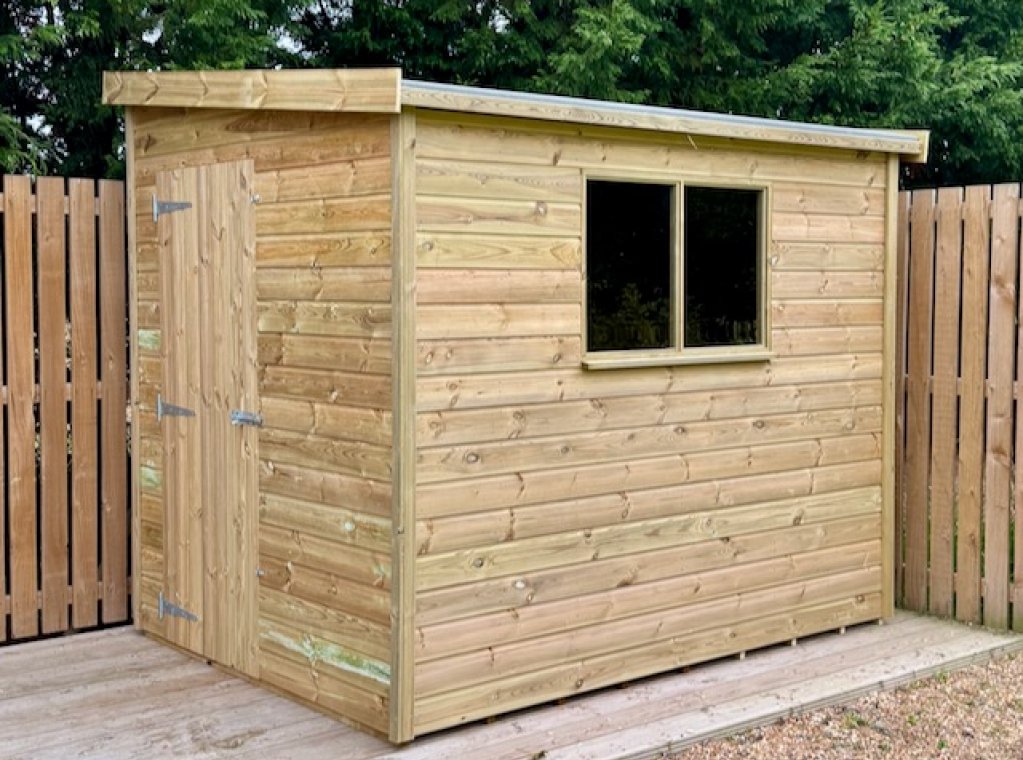

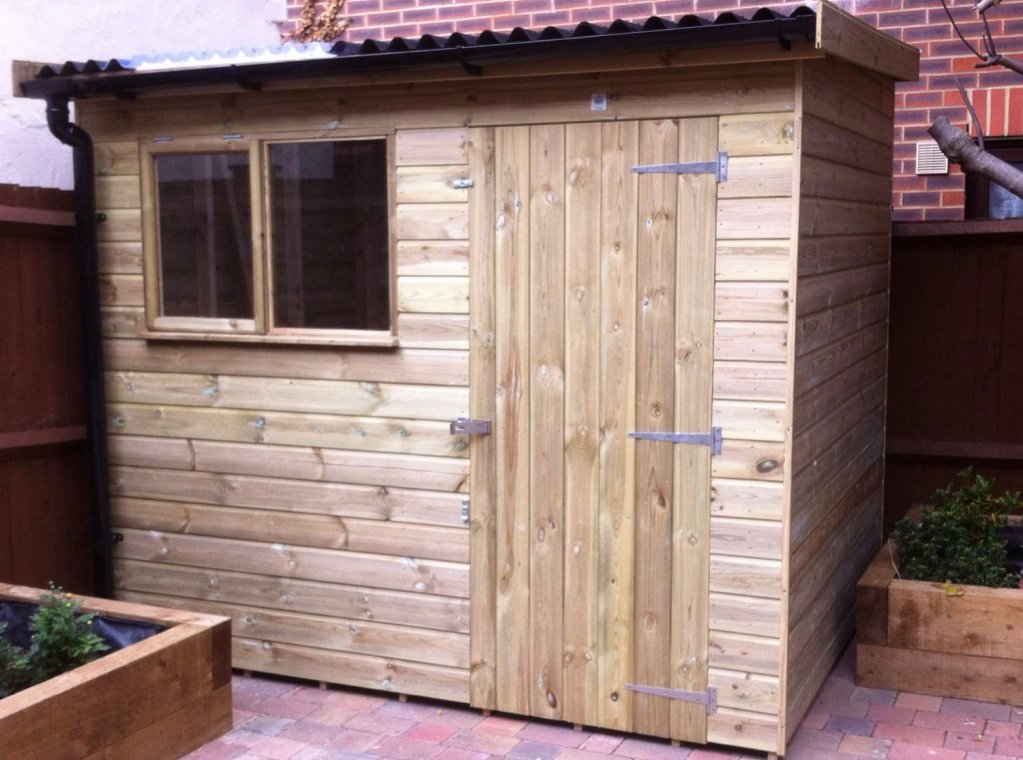

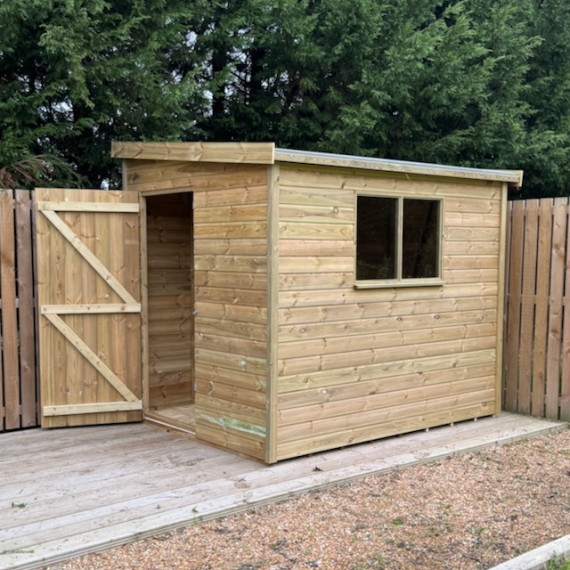

Reverse Essex Pent
This wooden garden pent shed has 5 different door position variations intended to suit any style garden. Perfect for positioning with the high end against a wall or neighbouring boundary. It also boasts plenty of head room, making it perfect for large tools and equipment or can even be used as a simple workshop.
A further 5 door positions are available on our 'Essex Pent'
FOR 8FT, 9FT AND 10FT DEEP SHEDS WE HIGHLY RECOMMEND EPDM OR ONDULINE
FOR FULL SPECIFICATION SEE BELOW
- 4FT DEEP BUILDINGS IN POSITION 3 & 4 WILL RECIEVE A 27" DOOR
- TO HAVE DOUBLE DOORS AND WINDOWS IN 8FT WIDE AND BELOW; DOOR POSITION 1 OR 2 MUST BE SELECTED
- 12mm Cladding (16mm Nominal) as standard
- Joinery Made Window Frames With Cills
- Optional Extras Available
- Various Sizes and Door Positions Availabe
- Finance Available
- 100% Pressure Treated Timber Throughout
Delivery
CUSTOMISE YOUR SHED
- 4FT DEEP BUILDINGS IN POSITION 3 & 4 WILL RECIEVE A 27" DOOR
- TO HAVE DOUBLE DOORS AND WINDOWS IN 8FT WIDE AND BELOW; DOOR POSITION 1 OR 2 MUST BE SELECTED
- 12mm Cladding (16mm Nominal) as standard
- Joinery Made Window Frames With Cills
- Optional Extras Available
- Various Sizes and Door Positions Availabe
- Finance Available
- 100% Pressure Treated Timber Throughout
This wooden garden shed has 5 different design variations intended to suit any style garden. It also boasts plenty of head room, making it perfect for large tools and equipment or can even be used as a simple workshop.
The Reverse Essex Pent garden shed is made from high quality Red Wood Tongue and Groove cladding. Standard framing are 47mm x 35mm planed battens with diagonal supports for strength and stability, The roof and floor are made from 12mm T&G boarding which gives strength and durability. The floor has runners (50mm x 25mm Pressure Treated battens) spaced approximately 1' apart to give adequate air flow. The Roof has main and Intermediate beams for roof strength and is overlayed with a good quality green mineral felt.
The Layout of this building is different to standard sheds, the FRONT is the first size and the SIDE is the second size, for example: 8' x 6' is 8' front with windows and door; going back 6'
FOR 8FT, 9FT AND 10FT DEEP SHEDS WE HIGHLY RECOMMEND EPDM OR ONDULINE
NUMBER OF WINDOWS AS STANDARD VARY DEPENDING ON THE SIZE AND DOOR POSITION; IF UNCLEAR DO NOT HESITATE TO ASK US.
- 100% Pressure Treated Timber Throughout
- 47mm x 35mm Treated Eased Edge Framework
- Pressure Treated T & G Roof and Floor
- 30"x 70" Ledge & Braced Door as Standard (various door options available)
- 4FT DEEP BUILDINGS IN POSITION 3 & 4 WILL RECIEVE A 27" DOOR
- TO HAVE DOUBLE DOORS AND WINDOWS IN 8FT WIDE AND BELOW; DOOR POSITION 1 OR 2 MUST BE SELECTED
- 4mm Horticultural Glass
- Polyester Green Mineral Felt
- For 8FT, 9FT AND 10FT Deep Sheds We Highly Recomend EPDM

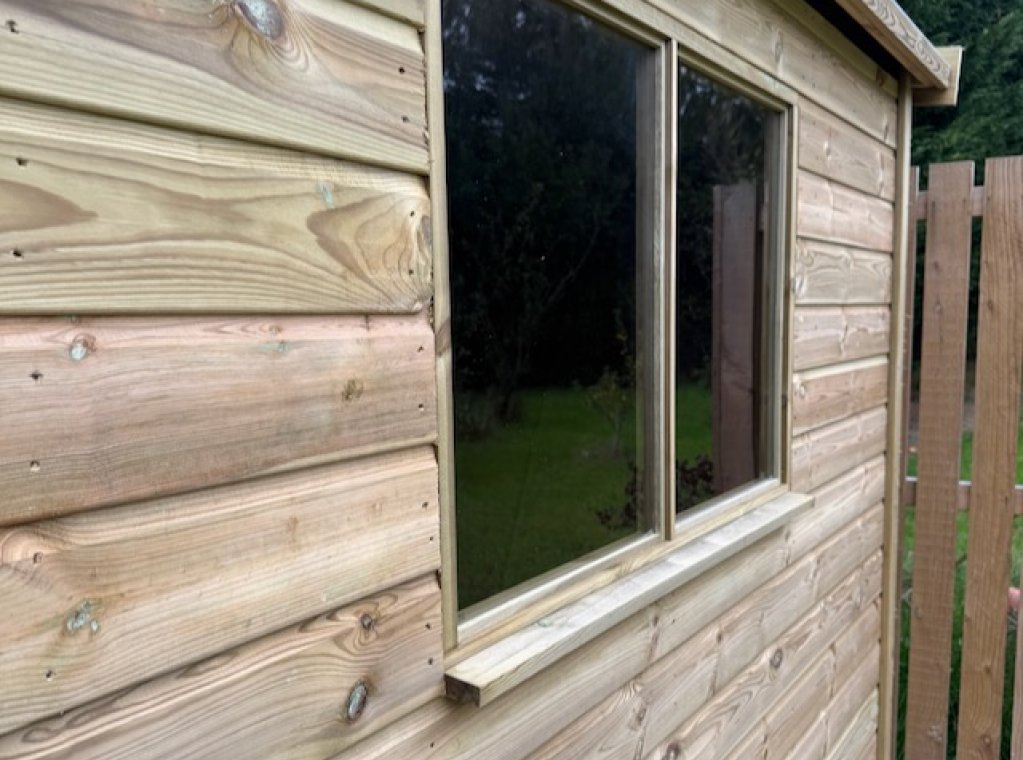

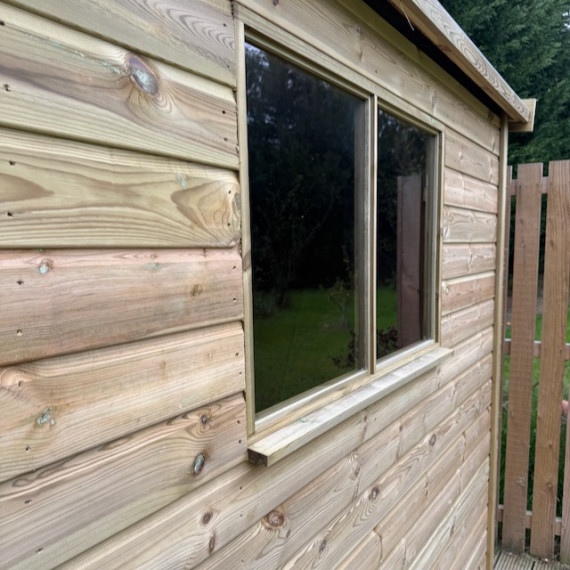

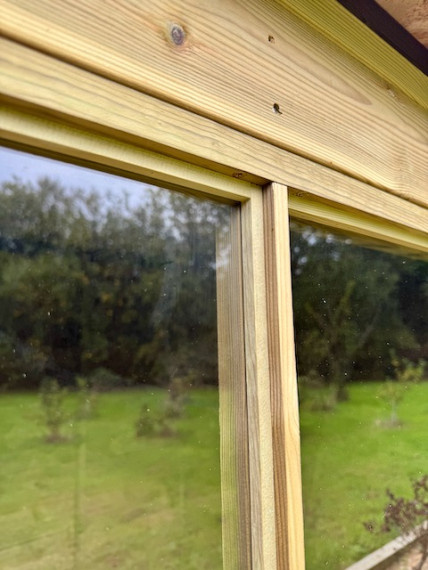

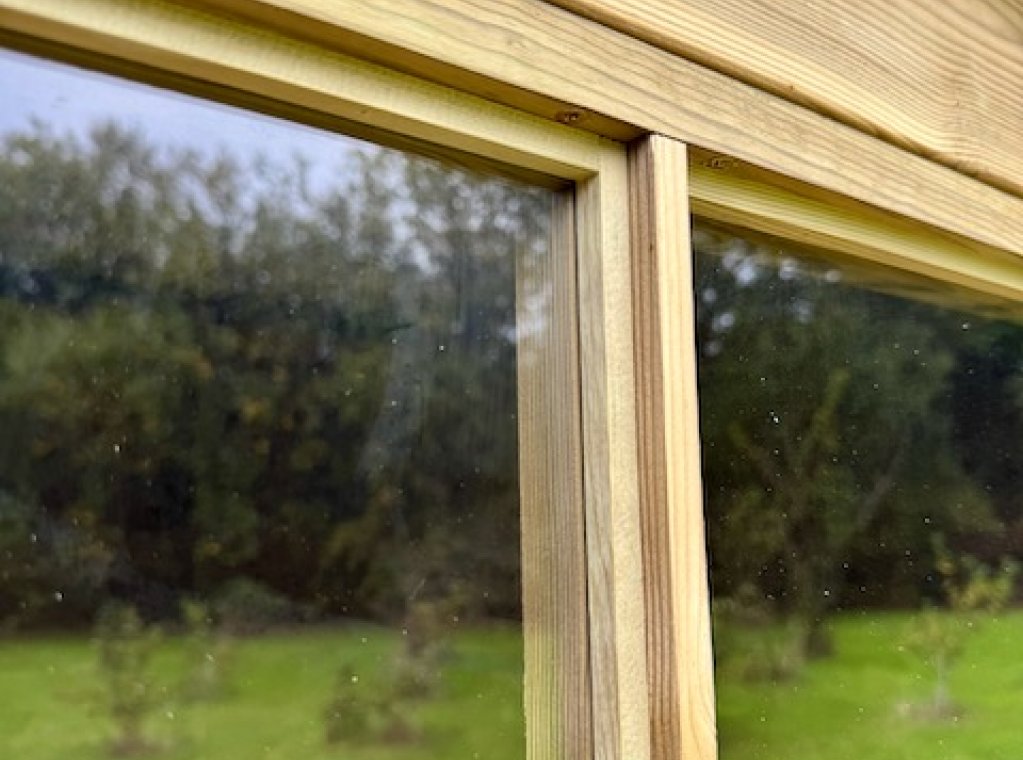

- Joinery Made Window Frames With Cills & 4mm Horticultural Glass
- 3x2 Purlins Minimum
- 4x2 Truss as Requied (Depending on Size)
- External Height 2260mm Down to 2050mm
- Internal Height 2080mm Down to 1940mm
- 5 Different Door Positions Available
- Galvanised Door Furniture
- Stainless Nails Used in Construction
- Shed Frame Screwed Not Nailed
We only use the best quality slow-grown Red Spruce Timber from our partners in Sweden.
All of our timber has been penetrated with wood preservative to enhance protection in terms of the prevention of rot, decay and insect and fungal attack. If timber is left untreated, the quality can deteriorate rapidly over time as a result of exposure to the elements of weathering and moisture.
Despite the care we take in importing & Pressure treating the best timber possible, all timber is porous and therefore can absorb water, swell, shrink, crack and twist throughout its lifespan.
However, together we can help minimise these. These include:
- Double Nailing
We use Stainless Steel Nails double nailed in each board in each upright to help minimise movement and twisting - Uprights
We use strong timber at close intervals to support the timber cladding. - Water Repellent Treatment
You can customise the building with a colour of your choice or decide to keep it clear, but all cladding timber will need a water repellent treatment to help stop water penetration and moisture build-up. Moisture build-up will occur naturally especially during winter months and in some cases will cause dampness and mould. Water repellent treatment will help minimise this and if any mould occurs, this can normally be remidied by wiping clear with a mild bleach soultion and ventilating the building when possible. - Regular Maintenance
Your Building should be reletively maintenance free, however as with everything it does need to be kept an eye on! When the building does move slightly throughout the year, doors and windows may need adjusting. Windows have been silicone sealed on manufacture but may need resealing if required.
Dont be afraid to lubricate locks & hinges. Being out in the elements is a strain on all materials!
Keep an eye on roofing materials. Felt will particuarly need keeping an eye on, although we provide a good quality material, felt again does contract and expand during the seasons and over time can tear and crack. Once this happens it is more likely the shed will start to leak. Therefore replacement will be necessary.
Other roofing materials we offer do offer some sort of warranty, so if you feel your building is leaking from the roof, please get in touch for advice.
